M29W320EB70ZE6E IC FLASH 32MBIT PARALLEL 48TFBGA Micron Technology Inc.

Name: M29W320EB70ZE6E IC FLASH 32MBIT PARALLEL 48TFBGA Micron Technology Inc
Brand: Micron Technology Inc.
Price: 1 USD

Brand Name : Micron Technology Inc.

Model Number : M29W320EB70ZE6E

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Non-Volatile

Memory Format : FLASH

Technology : FLASH - NOR

Memory Size : 32Mbit

Memory Organization : 4M x 8, 2M x 16

Memory Interface : Parallel

Clock Frequency : -

Write Cycle Time - Word, Page : 70ns

Access Time : 70 ns

Voltage - Supply : 2.7V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 48-TFBGA

Supplier Device Package : 48-TFBGA (6x8)

Contact Now

Product Details

Description

The M29W320E is a 32 Mbit (4Mb x8 or 2Mb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode. The device features an asymmetrical block architecture. The M29W320E has an array of 8 parameter and 63 main blocks. M29W320ET locates the Parameter Blocks at the top of the memory address space while the M29W320EB locates the Parameter Blocks starting from the bottom.
M29W320E has an extra 32 Kword (x16 mode) or 64 Kbyte (x8 mode) block, the Extended Block, that can be accessed using a dedicated command. The Extended Block can be protected and so is useful for storing security information. However the protection is irreversible, once protected the protection cannot be undone.
Each block can be erased independently so it is possible to preserve valid data while old data is erased. The blocks can be protected to prevent accidental Program or Erase commands from modifying the memory. Program and Erase commands are written to the Command interface of the memory. An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory is consistent with JEDEC standards.

Specifications

Attribute	Attribute Value
Manufacturer	Micron Technology Inc.
Product Category	Memory ICs
Series	-
Packaging	Tray Alternate Packaging
Package-Case	48-TFBGA
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	Parallel
Voltage-Supply	2.7 V ~ 3.6 V
Supplier-Device-Package	48-TFBGA (6x8)
Memory Capacity	32M (4M x 8, 2M x 16)
Memory-Type	FLASH - NOR
Speed	70ns
Format-Memory	FLASH

Descriptions

FLASH - NOR Memory IC 32Mb (4M x 8, 2M x 16) Parallel 70ns 48-TFBGA (6x8)

NOR Flash Parallel 3V/3.3V 32M-bit 4M x 8/2M x 16 70ns 48-Pin TFBGA Tray

Wholesale M29W320EB70ZE6E IC FLASH 32MBIT PARALLEL 48TFBGA Micron Technology Inc. from china suppliers

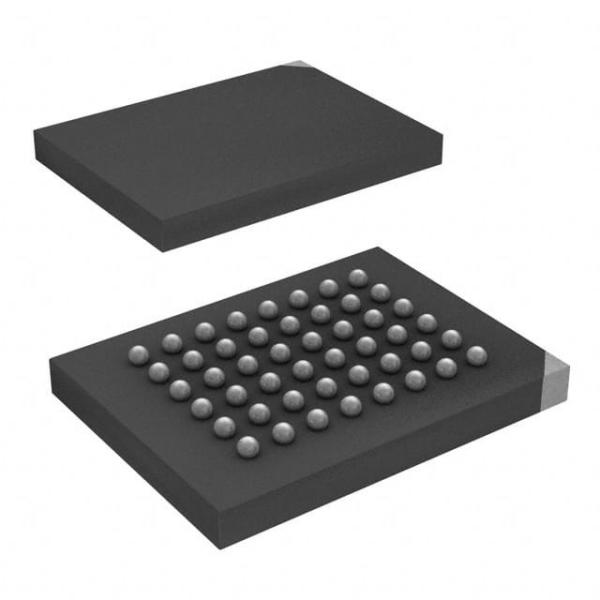

M29W320EB70ZE6E IC FLASH 32MBIT PARALLEL 48TFBGA Micron Technology Inc. Images
