MX25L6406EMI-12G IC FLASH 64MBIT SPI 86MHZ 16SOP Macronix

Name: MX25L6406EMI12G IC FLASH 64MBIT SPI 86MHZ 16SOP Macronix
Brand: Macronix
Price: 1 USD

Brand Name : Macronix

Model Number : MX25L6406EMI-12G

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Non-Volatile

Memory Format : FLASH

Technology : FLASH - NOR

Memory Size : 64Mbit

Memory Organization : 8M x 8

Memory Interface : SPI

Clock Frequency : 86 MHz

Write Cycle Time - Word, Page : 300µs, 5ms

Access Time : -

Voltage - Supply : 2.7V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 16-SOIC (0.295", 7.50mm Width)

Supplier Device Package : 16-SOP

Contact Now

Product Details

GENERAL DESCRIPTION

The device feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input.

FEATURES

GENERAL
• Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
• Serial Peripheral Interface compatible -- Mode 0 and Mode 3
• 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (Dual Output mode) structure
• 2048 Equal Sectors with 4K byte each
- Any Sector can be erased individually
• 128 Equal Blocks with 64K byte each
- Any Block can be erased individually
• Program Capability
- Byte base
- Page base (256 bytes)
• Latch-up protected to 100mA from -1V to Vcc +1V

PERFORMANCE

• High Performance
- Fast access time: 86MHz serial clock
- Serial clock of Dual Output mode : 80MHz
- Fast program time: 1.4ms(typ.) and 5ms(max.)/page
- Byte program time: 9us (typical)
- Fast erase time: 60ms(typ.) /sector ; 0.7s(typ.) /block
• Low Power Consumption
- Low active read current: 25mA(max.) at 86MHz
- Low active programming current: 20mA (max.)
- Low active erase current: 20mA (max.)
- Low standby current: 50uA (max.)
- Deep power-down mode 5uA (typical)
• Typical 100,000 erase/program cycles
• 20 years of data retention

Specifications

Attribute	Attribute Value
Manufacturer	Macronix
Product Category	Memory ICs
Series	MX25xxx05/06
Packaging	Tube
Package-Case	16-SOIC (0.295", 7.50mm Width)
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	SPI Serial
Voltage-Supply	2.7 V ~ 3.6 V
Supplier-Device-Package	16-SOP
Memory Capacity	64M (8M x 8)
Memory-Type	FLASH - NOR
Speed	86MHz
Format-Memory	FLASH

Descriptions

FLASH - NOR Memory IC 64Mb (8M x 8) SPI 86MHz 16-SOP

NOR Flash Serial-SPI 3.3V 64M-bit 64M/32M x 1/2-bit 8ns 16-Pin SOP

Wholesale MX25L6406EMI-12G IC FLASH 64MBIT SPI 86MHZ 16SOP Macronix from china suppliers

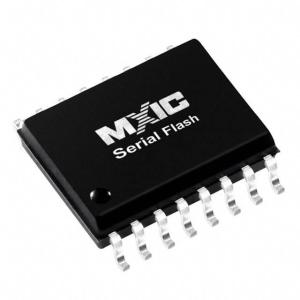

MX25L6406EMI-12G IC FLASH 64MBIT SPI 86MHZ 16SOP Macronix Images
