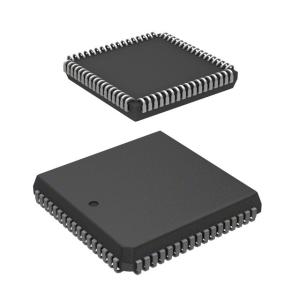

7005L20JGI IC SRAM 64KBIT PARALLEL 68PLCC Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : 7005L20JGI

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Dual Port, Asynchronous

Memory Size : 64Kbit

Memory Organization : 8K x 8

Memory Interface : Parallel

Clock Frequency : -

Write Cycle Time - Word, Page : 20ns

Access Time : 20 ns

Voltage - Supply : 4.5V ~ 5.5V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 68-LCC (J-Lead)

Supplier Device Package : 68-PLCC (24.21x24.21)

Contact Now

Product Details

Description

The IDT7005 is a high-speed 8K x 8 Dual-Port Static RAM. The IDT7005 is designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full speed, error-free operation without the need for additional discrete logic.

Features

◆ True Dual-Ported memory cells which allow simultaneous reads of the same memory location
◆ High-speed access
– Military: 20/25/35/55/70ns (max.)
– Industrial: 20/35/55ns (max.)
– Commercial:15/17/20/25/35/55ns (max.)
◆ Low-power operation
– IDT7005S
Active: 750mW (typ.)
Standby: 5mW (typ.)
– IDT7005L
Active: 700mW (typ.)
Standby: 1mW (typ.)
◆ IDT7005 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than one device
◆ M/S = H for BUSY output flag on Master, M/S = L for BUSY input on Slave
◆ Interrupt Flag
◆ On-chip port arbitration logic
◆ Full on-chip hardware support of semaphore signaling between ports
◆ Fully asynchronous operation from either port
◆ Devices are capable of withstanding greater than 2001V electrostatic discharge
◆ Battery backup operation—2V data retention
◆ TTL-compatible, single 5V (±10%) power supply
◆ Available in 68-pin PGA, PLCC and a 64-pin thin quad flatpack
◆ Industrial temperature range (-40°C to +85°C) is available for selected speeds
◆ Green parts available, see ordering information

Specifications

Attribute Attribute Value
Manufacturer IDT
Product Category Memory ICs
Series 7005L20
Type Asynchronous
Packaging * Alternate Packaging
Unit-Weight 0.171777 oz
Mounting-Style SMD/SMT
Package-Case 68-LCC (J-Lead)
Operating-Temperature -40°C ~ 85°C (TA)
Interface Parallel
Voltage-Supply 4.5 V ~ 5.5 V
Supplier-Device-Package 68-PLCC (24x24)
Memory Capacity 64K (8K x 8)
Memory-Type SRAM - Dual Port, Asynchronous
Speed 20ns
Access-Time 20 ns
Format-Memory RAM
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Interface-Type Parallel
Organization 8 k x 8
Supply-Current-Max 320 mA
Part-#-Aliases 7005 IDT7005L20JGI
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 4.5 V
Package-Case PLCC-68
Functional compatible componentForm,Package,Functional compatible component
Manufacturer Part# Description Manufacturer Compare
IDT70V05S20JG
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.170 INCH HEIGHT, GREEN, PLASTIC, LCC-68 Integrated Device Technology Inc 7005L20JGI vs IDT70V05S20JG
IDT7005L20JG
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 Integrated Device Technology Inc 7005L20JGI vs IDT7005L20JG
7005L20JG
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 Integrated Device Technology Inc 7005L20JGI vs 7005L20JG
7005L20JGI8
Memory		 PLCC-68, Reel Integrated Device Technology Inc 7005L20JGI vs 7005L20JGI8
IDT7005L20JGB
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQCC68, 0.950 X 0.950 INCH, 0.120 INCH HEIGHT, GREEN, PLASTIC, LCC-68 Integrated Device Technology Inc 7005L20JGI vs IDT7005L20JGB
IDT70V05S20GGI
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 Integrated Device Technology Inc 7005L20JGI vs IDT70V05S20GGI
70V05S20GG
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 Integrated Device Technology Inc 7005L20JGI vs 70V05S20GG
70V05S20GGI
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, CPGA68, 1.180 X 1.180 INCH, 0.160 INCH HEIGHT, GREEN, CERAMIC, PGA-68 Integrated Device Technology Inc 7005L20JGI vs 70V05S20GGI
IDT7005L20FG
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQFP68, 0.970 X 0.970 INCH, 0.080 INCH HEIGHT, GREEN, QFP-68 Integrated Device Technology Inc 7005L20JGI vs IDT7005L20FG
IDT7005L20FGB
Memory		 Dual-Port SRAM, 8KX8, 20ns, CMOS, PQFP68, 0.970 X 0.970 INCH, 0.080 INCH HEIGHT, GREEN, QFP-68 Integrated Device Technology Inc 7005L20JGI vs IDT7005L20FGB

Descriptions

SRAM - Dual Port, Asynchronous Memory IC 64Kb (8K x 8) Parallel 20ns 68-PLCC (24.21x24.21)
SRAM 8K x 8 Dual-Port RAM
