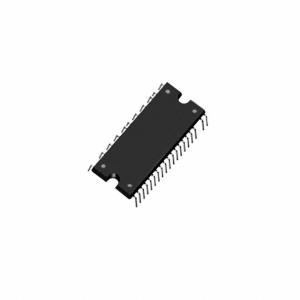

SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc.

Name: SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc
Brand: Sanken Electric USA Inc.
Price: 1 USD

Brand Name : Sanken Electric USA Inc.

Model Number : SIM6822M

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Motor Type - Stepper : -

Motor Type - AC, DC : Brushless DC (BLDC)

Function : Driver

Output Configuration : Half Bridge (3)

Interface : Logic

Technology : IGBT

Step Resolution : -

Applications : Home Appliance

Current - Output : 5A

Voltage - Supply : 13.5V ~ 16.5V

Voltage - Load : 600V (Max)

Operating Temperature : -20°C ~ 100°C (TA)

Mounting Type : Through Hole

Package / Case : 40-DIP (0.657", 16.70mm), 29 Leads

Supplier Device Package : 40-DIP LF2971

Contact Now

SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc.

Product Details

Description

The SIM6822M are high voltage 3-phase motor driver ICs in which transistors, a pre-driver IC (MIC), and bootstrap circuits (diodes and resistors) are highly integrated.

Features

●Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)
●CMOS-compatible Input (3.3 V or 5 V)
●Bare Lead Frame: Pb-free (RoHS Compliant)
●Isolation Voltage: 1500 V (for 1 min)UL-recognized Component (File No.: E118037) (SIM6880M UL Recognition Pending)
●Fault Signal Output at Protection Activation (FO Pin)
●High-side Shutdown Signal Input (SD Pin)
●Protections Include:
Overcurrent Limit (OCL): Auto-restart
Overcurrent Protection (OCP): Auto-restart
Undervoltage Lockout for Power Supply
High-side (UVLO_VB): Auto-restart
Low-side (UVLO_VCC): Auto-restart
Thermal Shutdown (TSD): Auto-restart

Application

●Refrigerator Compressor Motor
●Fan Motor and Pump Motor for Washer and Dryer
●Fan Motor for Air Conditioner, Air Purifier, and Electric Fan

Specifications

Attribute	Attribute Value
Manufacturer	Sanken
Product Category	Full, Half-Bridge Drivers
Series	-
Packaging	Tube
Package-Case	40-DIP (0.657", 16.70mm) 29 Leads
Technology	IGBT
Operating-Temperature	-20°C ~ 100°C (TA)
Mounting-Type	Through Hole
Features	Bootstrap Circuit
Applications	AC Motors
Interface	Logic
Voltage-Supply	13.5 V ~ 16.5 V
Supplier-Device-Package	40-DIP LF2971
Rated Output Current	5A
Fault-Protection	Current Limiting, Over Temperature, UVLO
Output-Configuration	Half Bridge (3)
Load-Type	Inductive
Rds-On-Typ	-
Current-Peak-Output	7.5A
Voltage-Load	400V (Max)

Descriptions

Half Bridge (3) Driver AC Motors IGBT 40-DIP LF2971

Triple Half Bridge Motor Driver 300V 30-Pin DIP Module

Wholesale SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc. from china suppliers

SIM6822M IC BRIDGE DRIVER PAR 40DIP Sanken Electric USA Inc. Images
